Hard drive:
Workstation 610 hard drive bay - remove the magnetic stripe reader

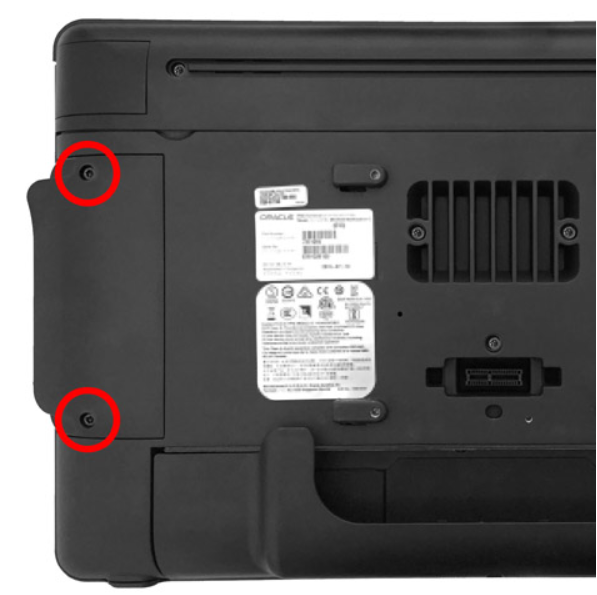

The hard drive is behind the magnetic stripe reader. Take out the two bolts circled in the picture below. Remove the Magnetic Stripe Reader. Unplug the cable from inside the case. Do not remove the green plastic tag that says Oracle. Pull on the metal bracket where the second arrow is on the right. (3rd picture). The disk is just a printed circuit board mounted on a metal frame.

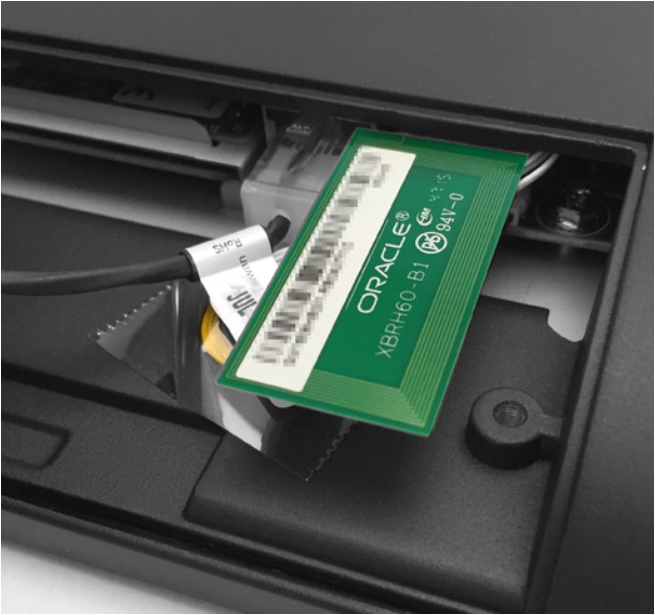

Take out the phone plug that attaches the Mag Stripe Reader - do not pull out the plastic tag that says Oracle - do not touch.
Pull on the second arrow on the right with fingernail. The disk pulls straight out.

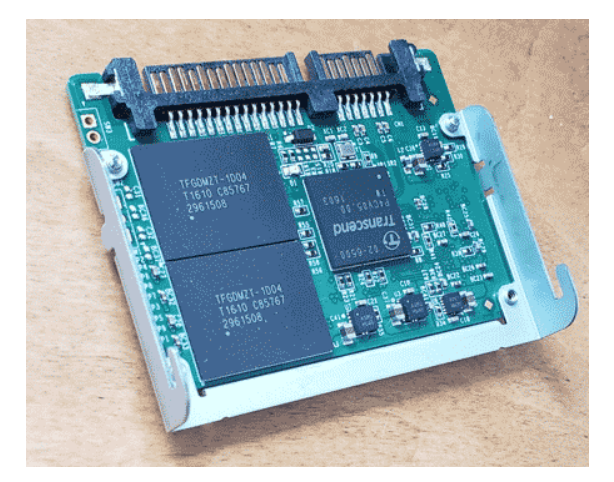

The hard drive only fits in one way. It is mounted on a small bracket. The two hooks hold onto the mainboard.
Reference: Workstation 610 port diagram
