Micros Workstation 610 - General Troubleshooting

Back cover:  Part Number / Serial Number - silver tags

Micros Workstation 610

Diagnostic Utility:  c:\Win\Diagnostic_WS6_Win.exe

• Cash drawer test
  • Digit 1 * Digit 2 + Digit 4 + Digit 6 = Password

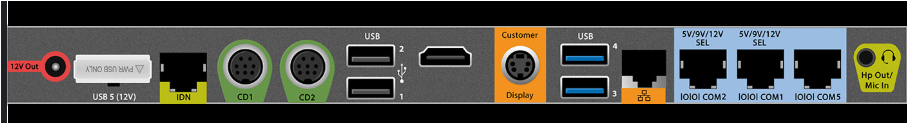

• Test Serial and IDN ports

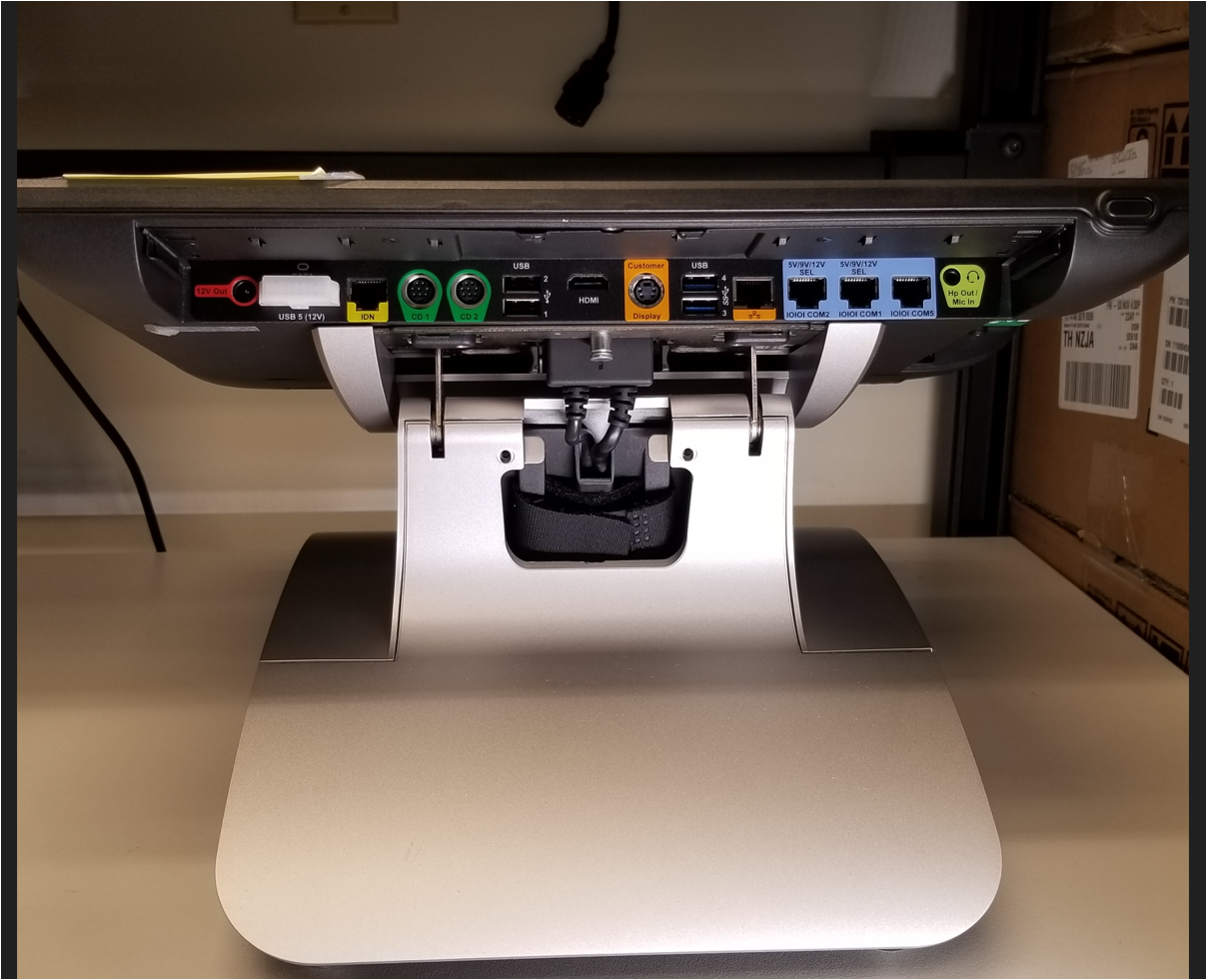

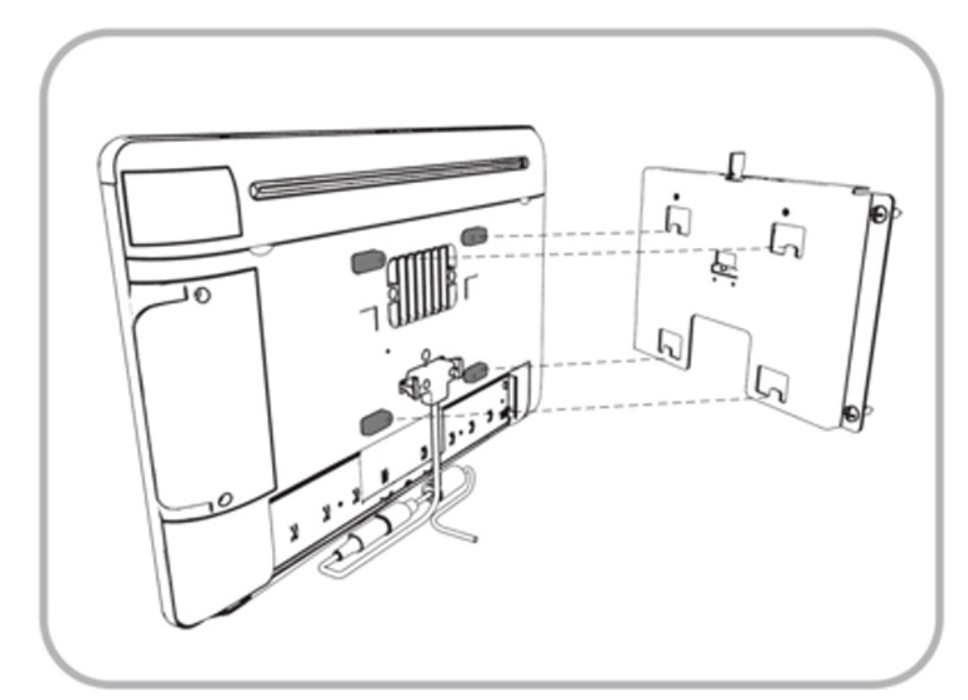

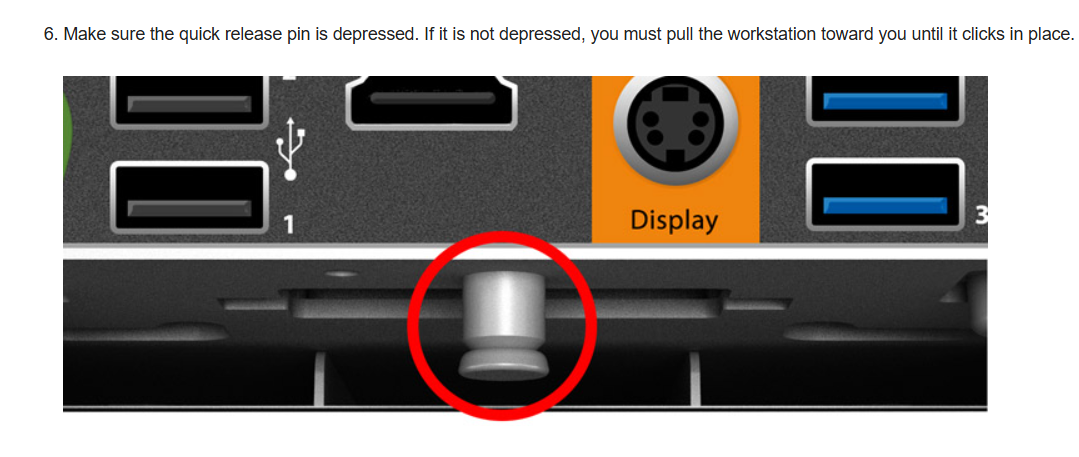

Workstation 610 with stand - Silver locking pin front center of the base-plate

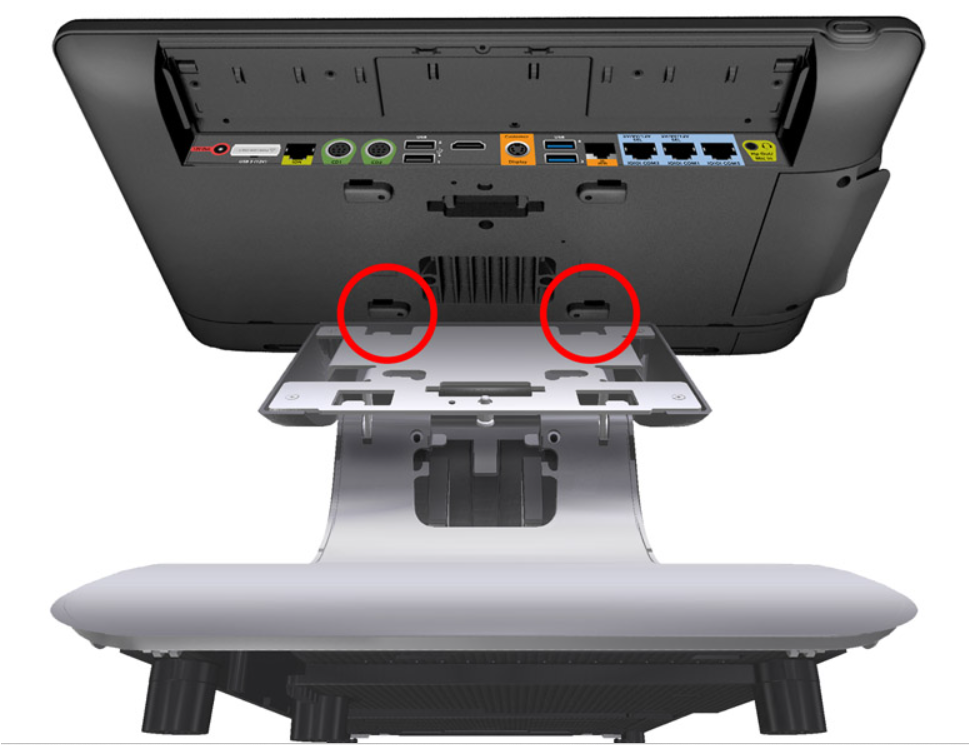

Silver Locking pin:

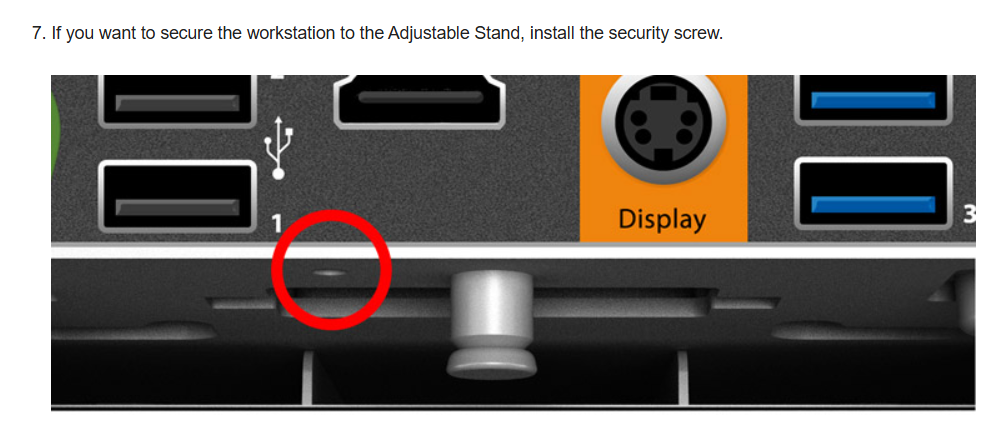

Security retention screw

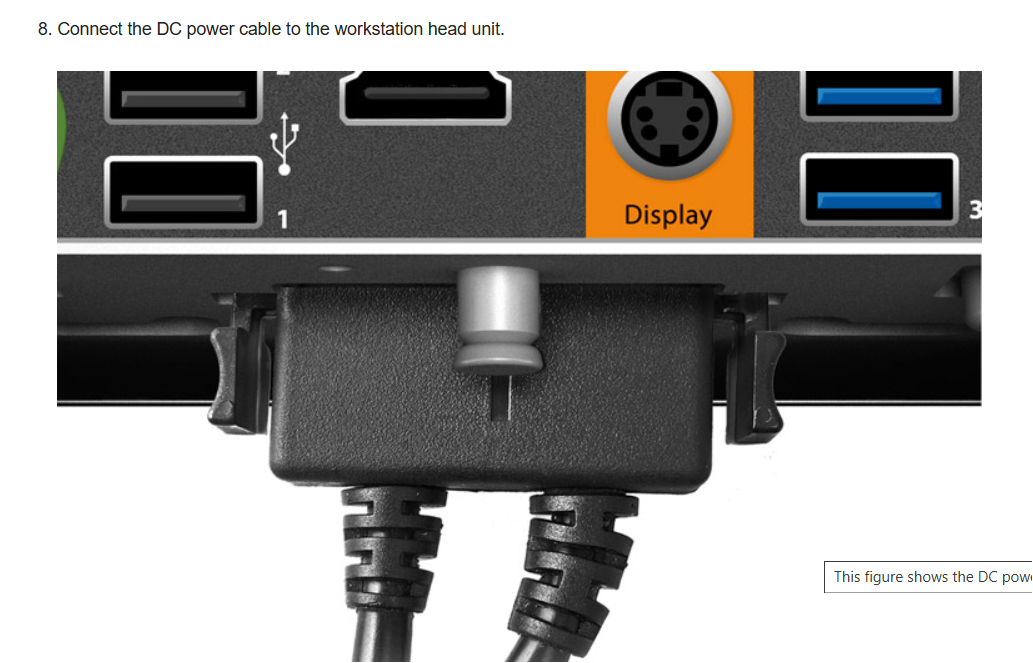

DC power cord

Base - power supply "Hi Pot"

Base - printer power brick can be powered from the base

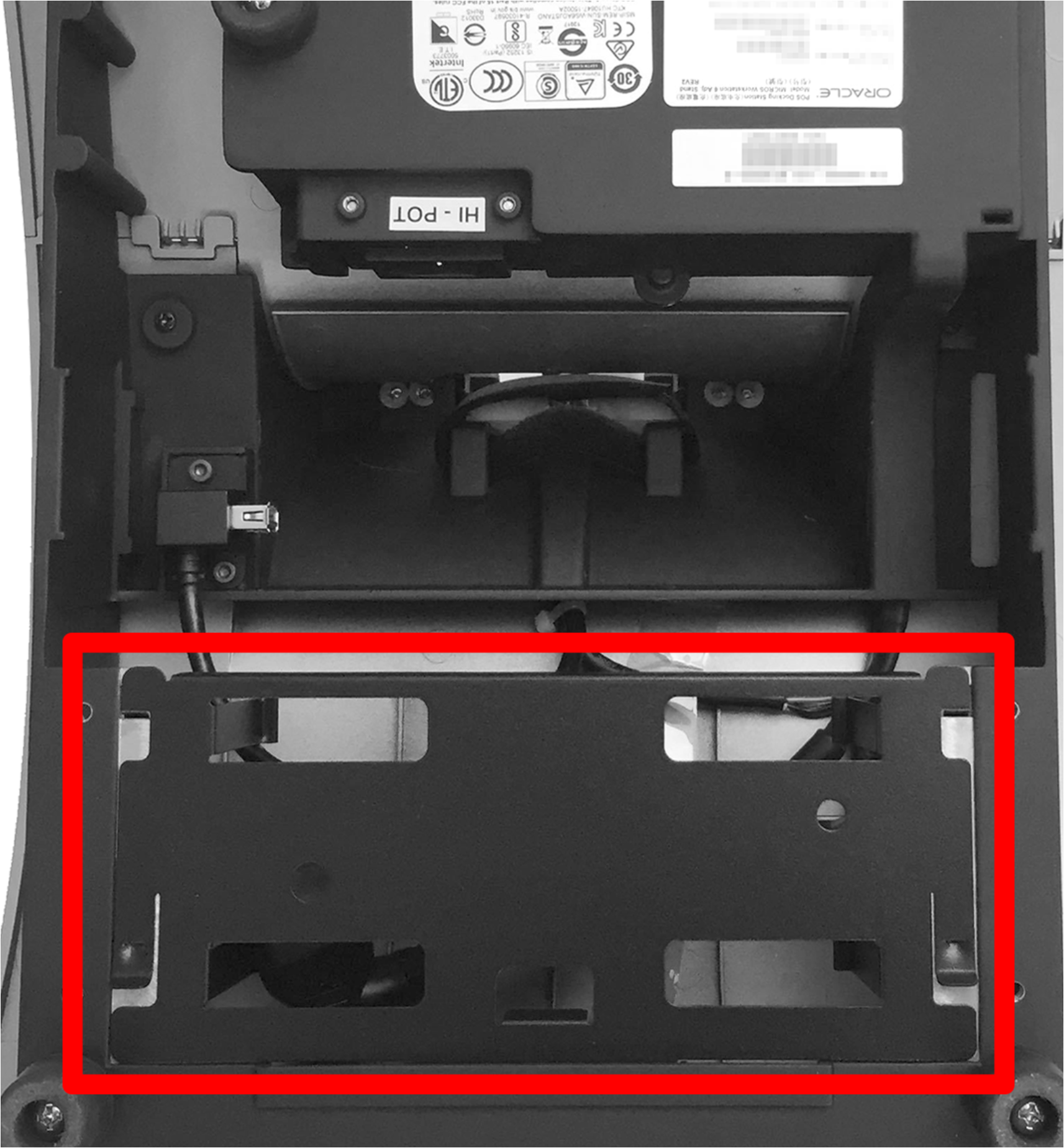

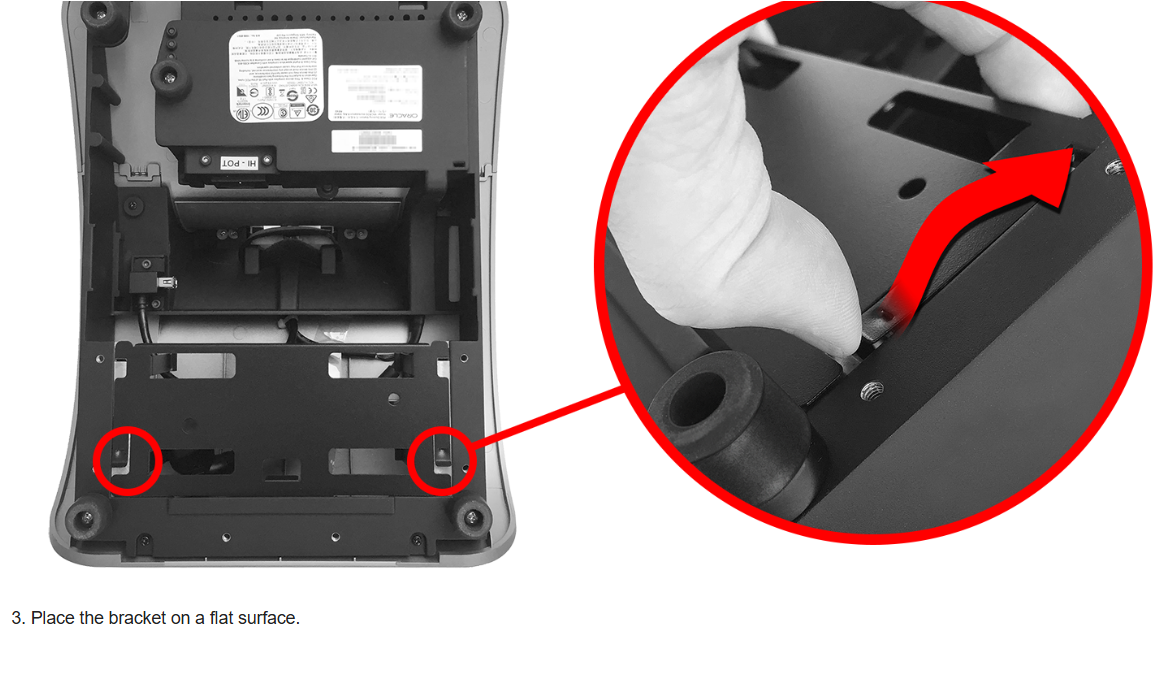

Remove printer power brick hatch

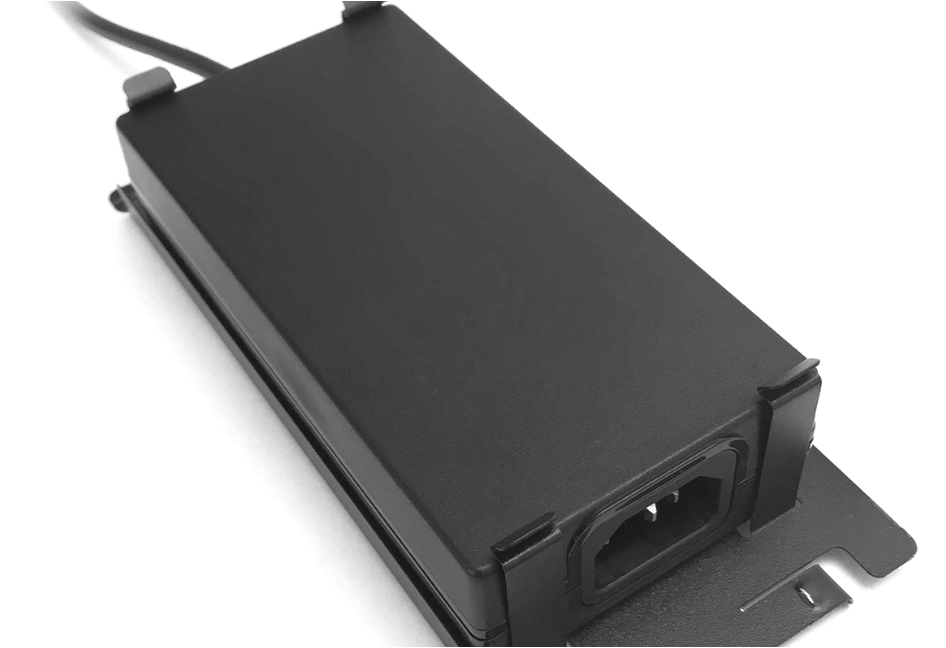

Power brick :  install on hatch cover

Workstation 610:  external power supply

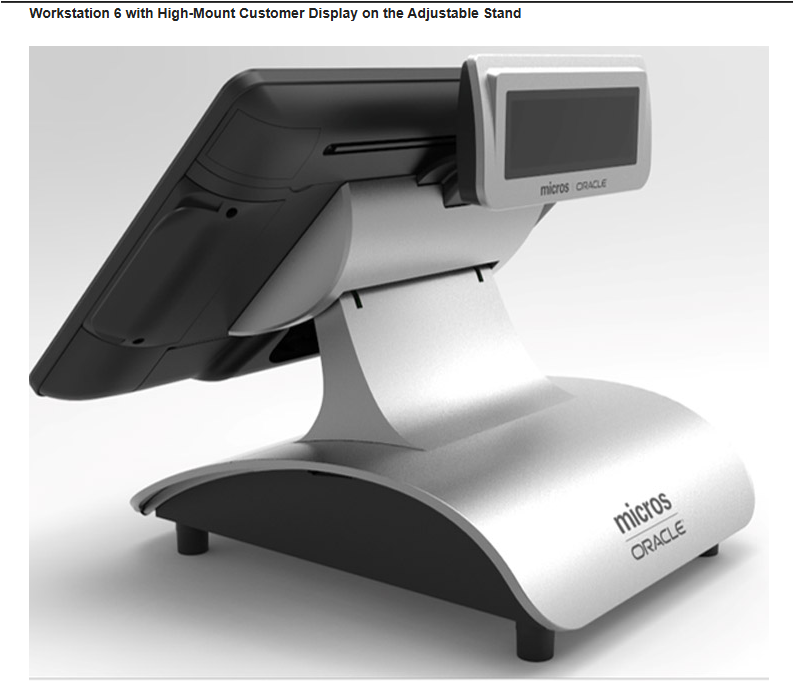

Workstation 610:  customer display

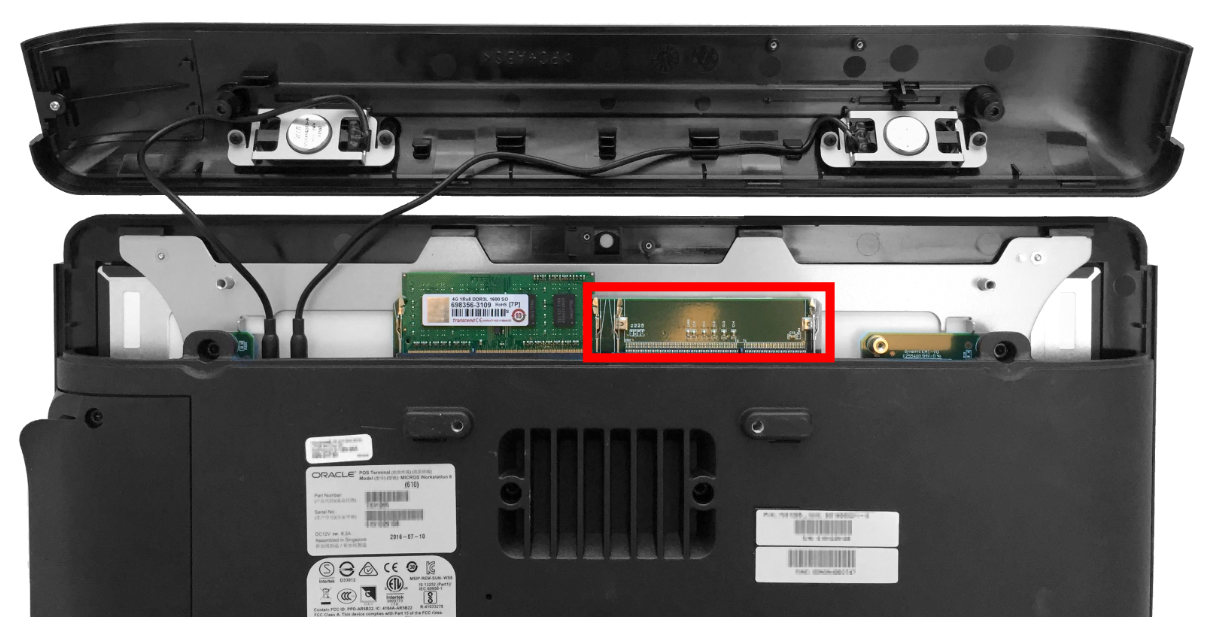

RAM memory

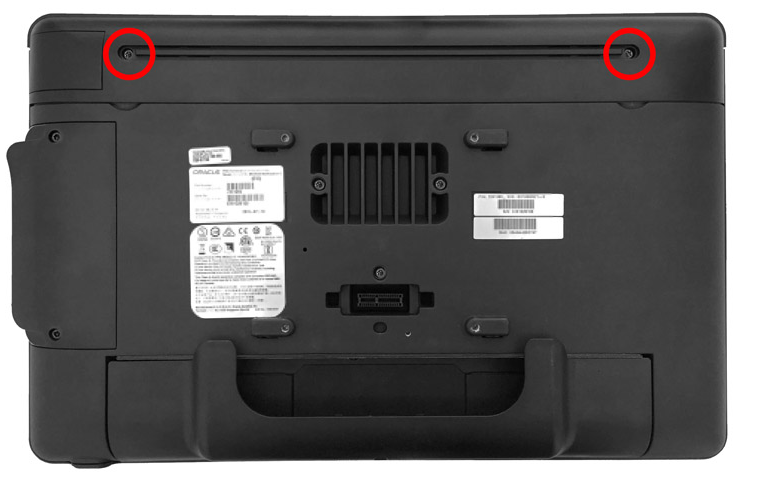

• Remove two bolts
• Remove top cover

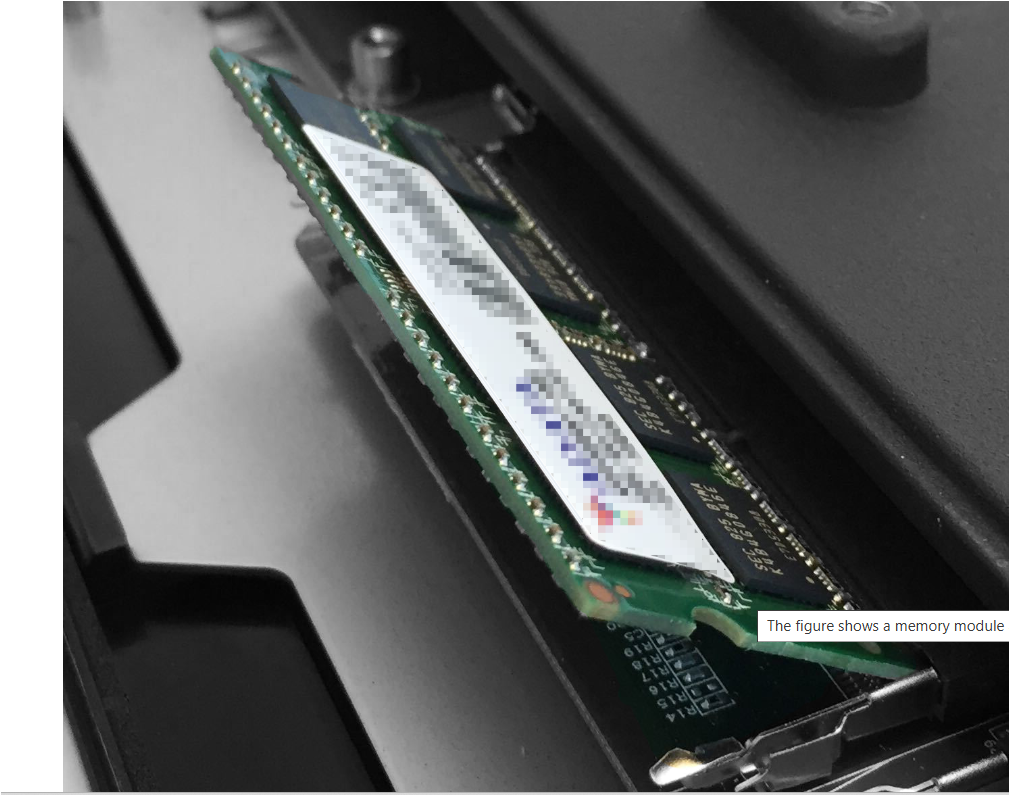

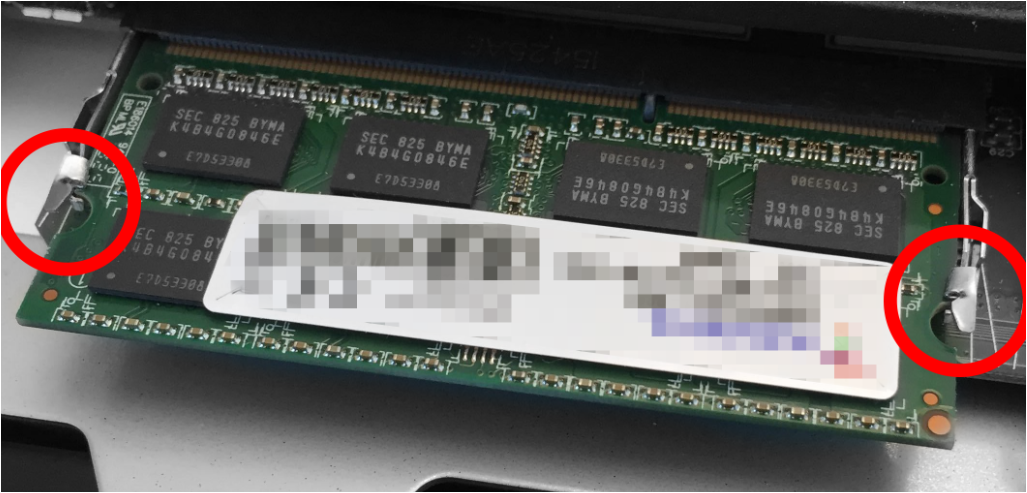

RAM memory module - unpin two silver arms and module pops up.  The module is removed and inserted in the popped up 30 degree angle

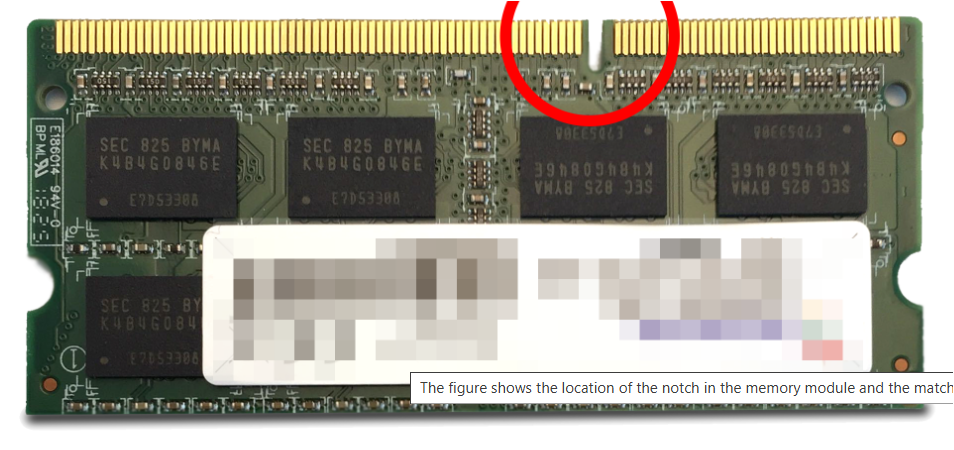

The RAM memory module is "keyed" - it can only be inserted one way due to a slot on the bottom

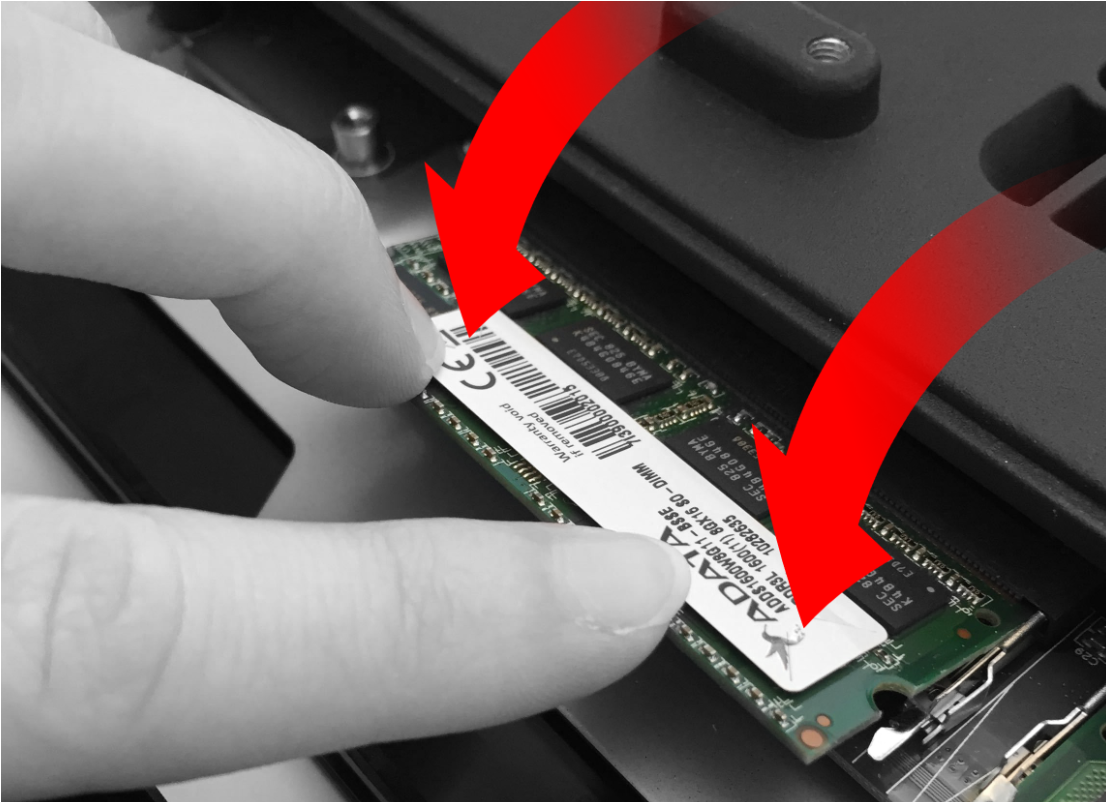

Push down module until the two silver arms on the sides snap in place

RAM memory seated correctly

Remove disk drive:

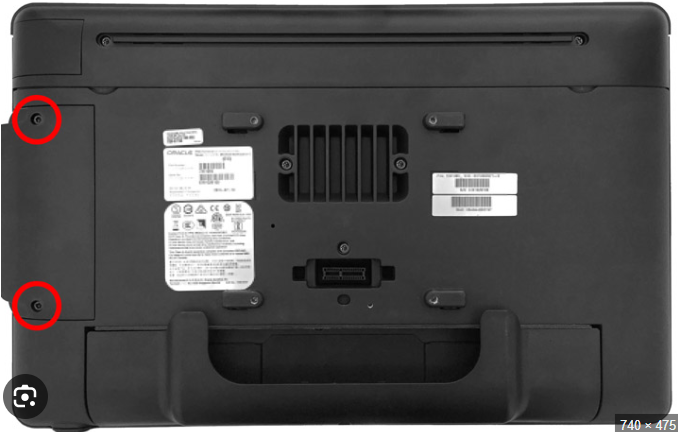

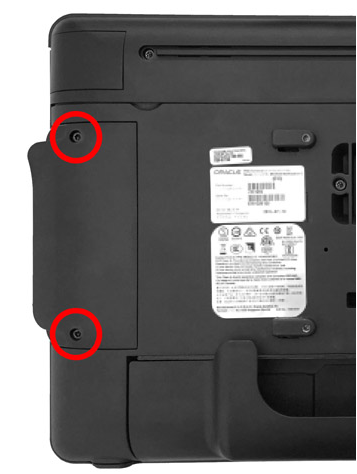

Remove two bolts

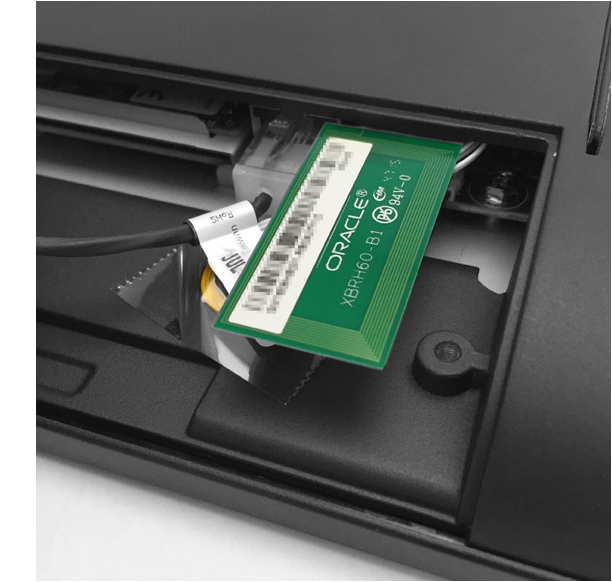

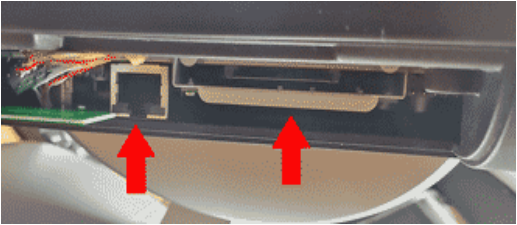

Remove Mag Stripe Reader Cable - do not remove green tag

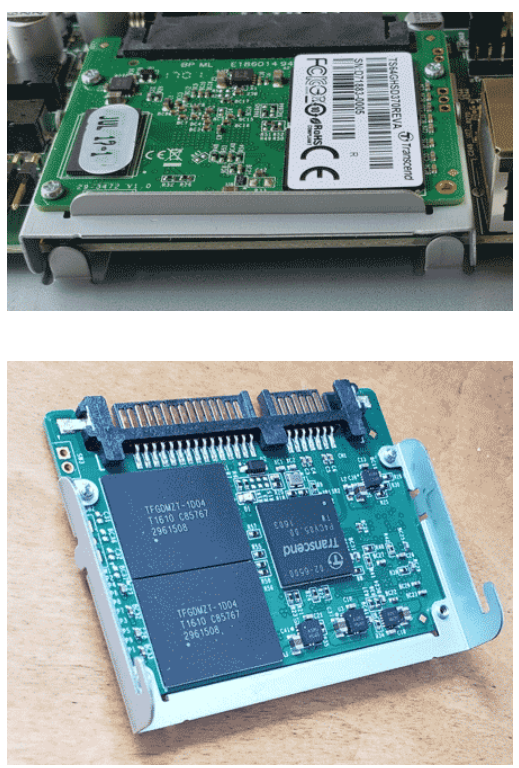

Disk drive on the right red arrow

_Disk drive - keyed, only fits in one way
